Millegap Hot Sales High Quality750kg/m³ Density Heat Insulation Refractory Plate Vermiculite Board Used for Metal Steel Ladle

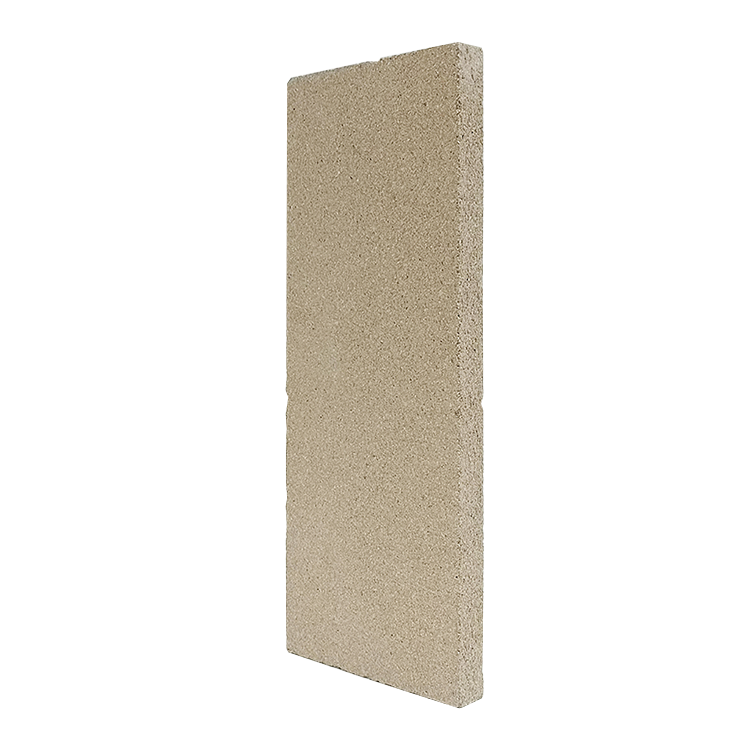

BW Vermiculite boards and shapes are crafted from expanded vermiculite combined with a special inorganic binder, offering exceptional resistance to thermal shocks and high temperatures of up to 1200°C. These boards are non-toxic and free from asbestos, glass, or mineral fibers, ensuring a safe and environmentally friendly solution. They are robust, mechanically stable, and exhibit excellent insulating properties.

MOQ: 50 PCS

Overview
Recommended Products

Product Description

$m density heat insulation refractory plate vermiculite board used for metal steel ladle-1$

the Millegap vermiculite boards are made of inorganic mineral expanded vermiculite, combined with inorganic binder and pressed by special technology. It is characterized by high temperature resistance of 1,200℃, thermal conductivity lower than 0.28W/m.K, non-combustibility, non-pollution, and no emission of harmful substances. Widely used in heat treatment equipment refractory heat insulation applications. According to the user needs according to the sample or drawing mold production. Thickness 8-80mm.

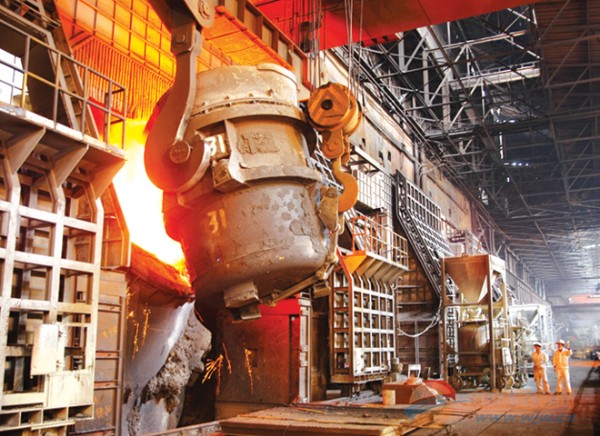

Compared with the traditional insulation layer, the heat preservation effect is good, can make the thickness of the insulation layer reduced to 10~18mm, at the same time can be refractory temperature up to 1200℃. The wall temperature of the middle ladle and the temperature drop of molten steel drop significantly, which can make the temperature drop of the ladle less than 50℃, which is conducive to the stable control of molten steel temperature and can effectively achieve the purpose of energy saving.

Features

● Fire resistance, Insulation

● Lightweight Non-Toxic

● High performances, more space reduced, environmental benefits

● Reliability at extreme operating temperatures

● Better thermal shock resistance, moisture Resistance

● Resistance to corrosion and erosion

● Durability versatility, has longer service life

● Less replacement on the insulation layer

● Less material costs on the Insulation layer

Specification

Physical parameter
Density (kgs/m3)	450	800	1200
Max temp.	1050 ℃	1150 ℃	1200 ℃
Strength	2.4/1.0 MPa	5.5/2.1 MPa	8/3.5 MPa
Linear shrinkage	3%	1%	1%

Thermal conduct
@ 200 ℃	0.11 W/m.k	0.16 W/m.k	0.23W/m.k
@ 400 ℃	0.13W/m.k	0.18 W/m.k	0.26 W/m.k
@ 600 ℃	0.15 W/m.k	0.2 W/m.k	0.27 W/m.k

Chemical parameter
SiO2	43-48 %	43-46 %	45-48 %
Al2O3	10-13 %	10-13 %	13-16 %
Fe2O3	4-6 %	4-6 %	4-6 %
TiO	1-2 %	1-2 %	1-2 %
MgO	16-23 %	16-23 %	14-20 %
K2O	7-10 %	7-10 %	5-8 %
Na2O	1-2 %	1-2 %	1-2 %
LOI @ 1000 C	4-6 %	4-6 %	3-5 %

Standard size & Thickness
000*610mm	10-80 mm thickness	10-80 mm thickness	10-80 mm thickness
1200*1000 mm	30-80 mm thickness	10-80 mm thickness	10-80 mm thickness
