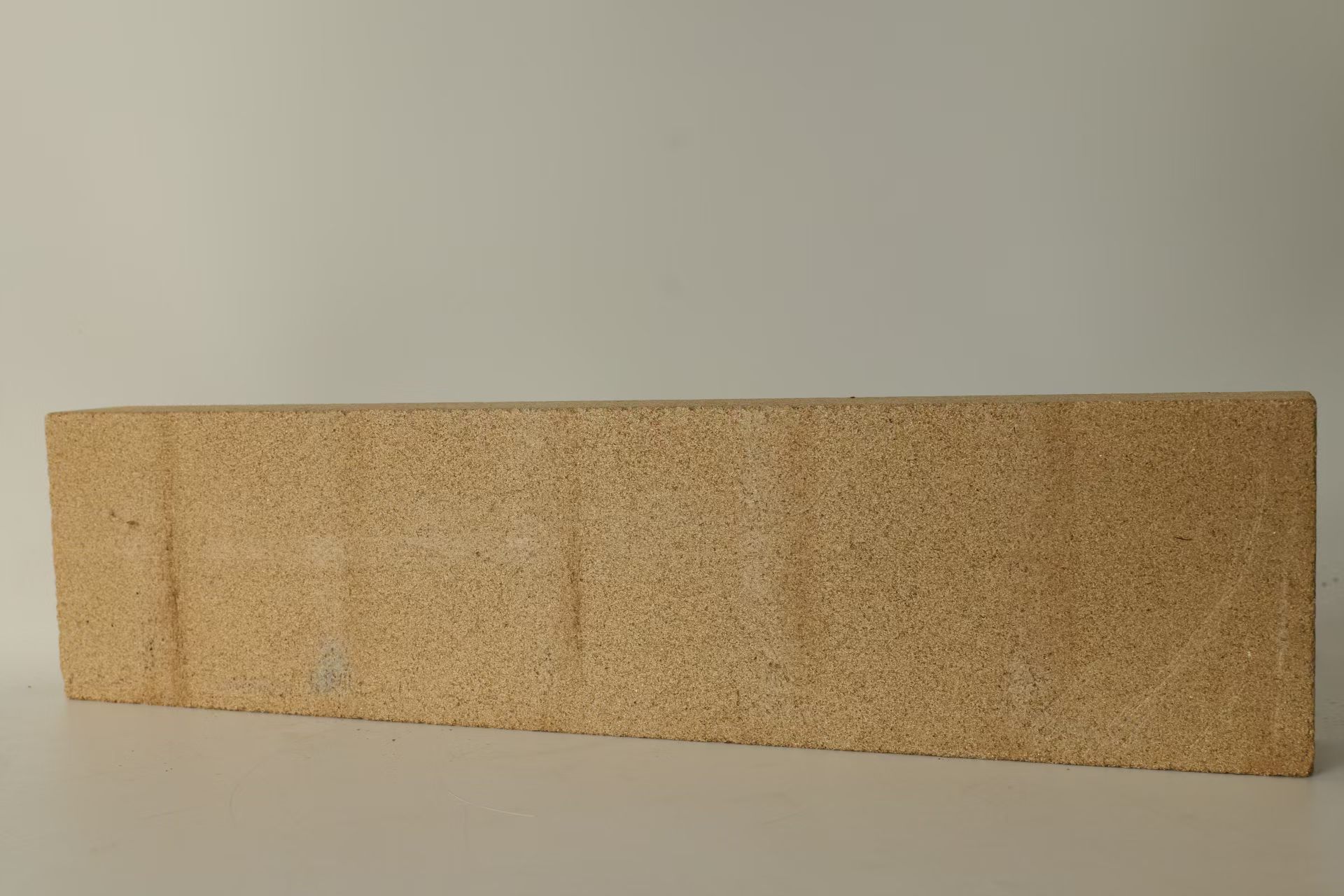

Millegap High Quality Low Density 500 Kg/m³ Electrolytic Aluminum Cells Refractory Vermiculite Bricks

V-1100 boards are not attacked by molten aluminium and are highly resistant to cryolite penetration and fluorides. Therefore V-1100 is ideal as back-up insulation in aluminium electrolysis cells, where it can be applied alone or as combi-boards (V-1100 glued on calcium silicate boards) for easy installation. V-1100 can also be used as hot- face insulation for covering electrolysis cells during start-up. Additionally, V-1100 can be applied in the secondary aluminium industry, for example as back-up insulation of the walls in holding furnaces, and in launders as back-up insulation and as top lid.

MOQ: 50 PCS

Overview
Recommended Products

Product Description

$m electrolytic aluminum cells refractory vermiculite bricks-1$

About The Bluewind LD Board

Bluewind LD is excellent in insulation performance, which is lightweight, and the thermal conductivity below 0.18 W/m.k at 800 °C working condition. And the most important, it can keep a stable thermal performance even for long time service in maximum temperature of 1000 °C, which makes it ideally to be used as an insulating material in the subcathodic, bottom and lower sidewall regions of aluminum reduction cells.

size	230X114mm
thickness	65mm
density	500kg/m³
refractory temperature	1100℃
compress strength	1.5 Mpa
bending strength	0.8 Mpa
porosity	80%
