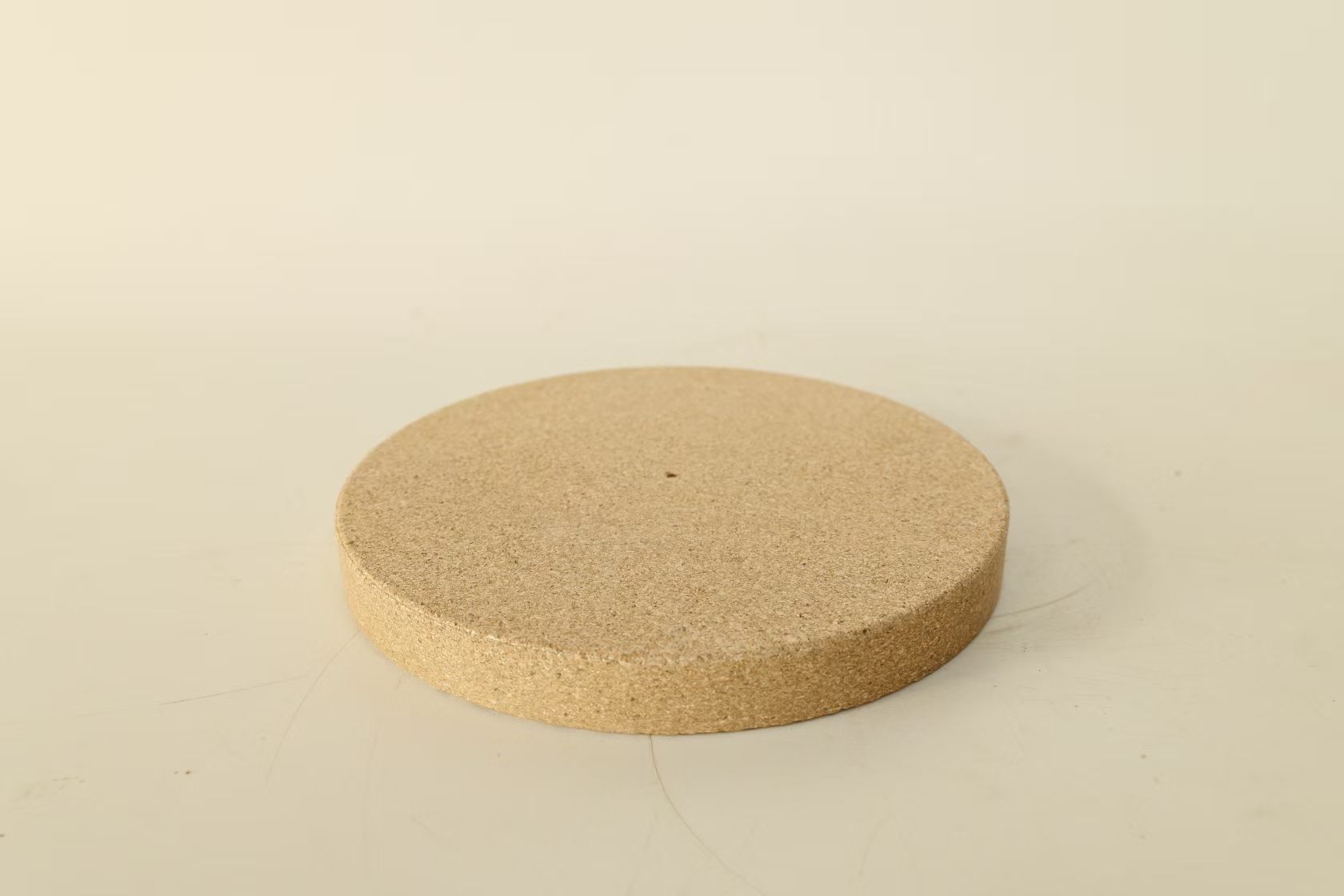

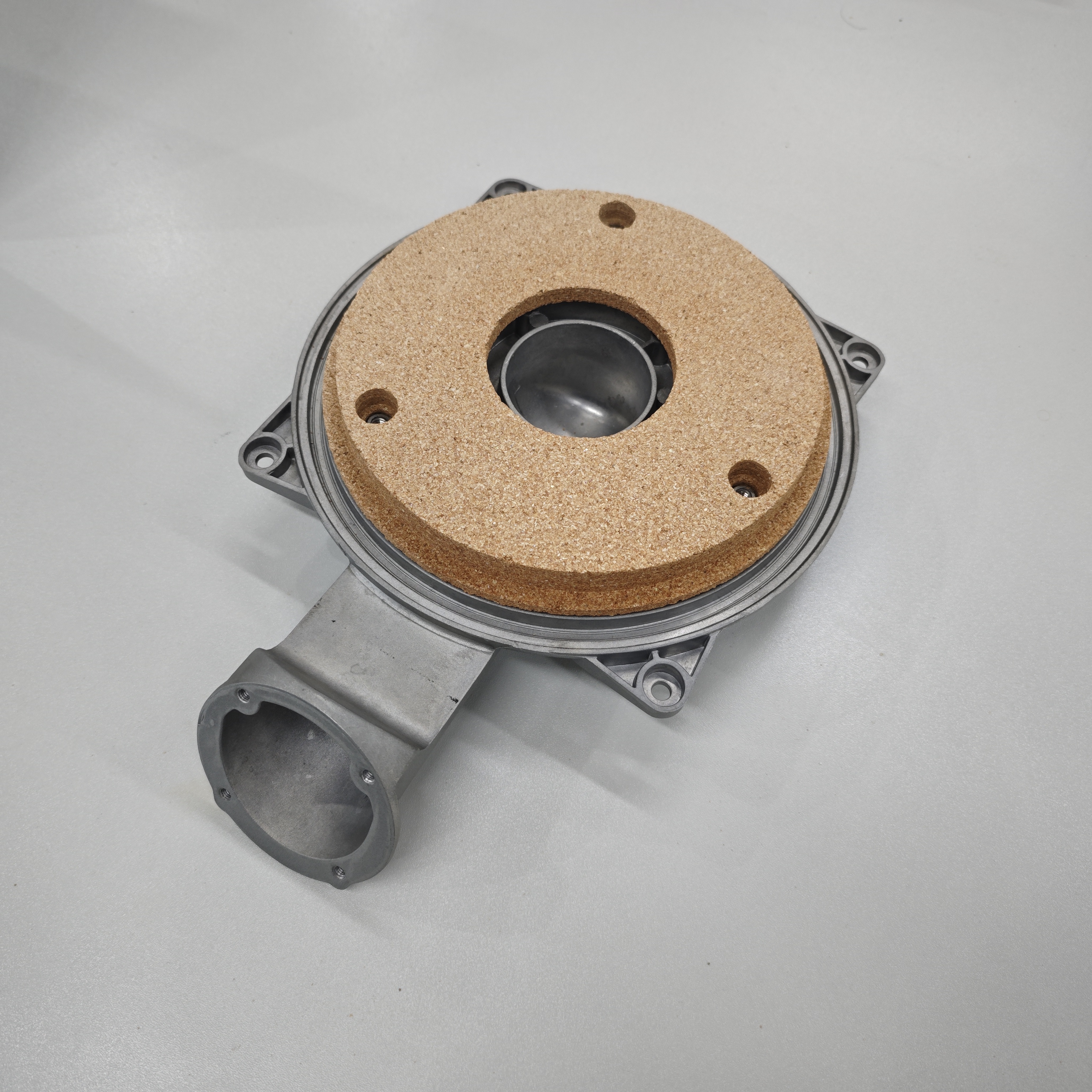

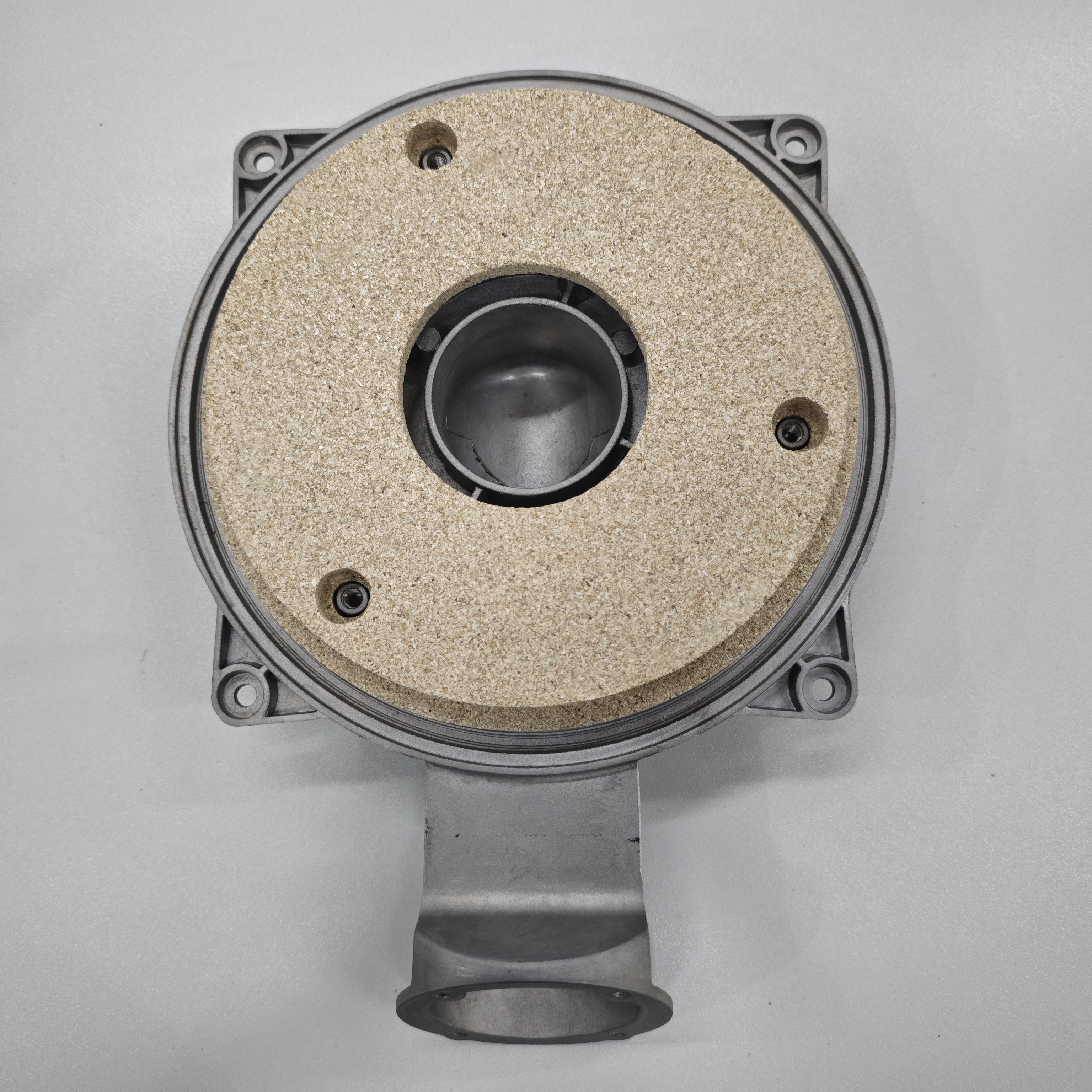

Vermiculite pressed parts are specialized components manufactured using exfoliated vermiculite, a natural mineral renowned for its excellent thermal insulation, fire resistance, and chemical stability. These parts are typically formed through customized moulds by heavy pressing shaping.
MOQ: 50 PCS
Physical parameter |
||||||
Density (kgs/m3) |
700 |
800 |
900 |
|||
Max temp |
1150 ℃ |
1150 ℃ |
1150 ℃ |
|||
Strength |
4.5/2.0 MPa |
5.5/2.1 MPa |
6.2/2.2 MPa |
|||
Linear shrinkage |
1% |
1% |
1% |
|||
Thermal conduct |
||||||
@ 200 ℃ |
0.14 W/m.k |
0.16W/m.k |
0.18 W/m.k |
|||
@ 400 ℃ |
0.16W/m.k |
0.18 W/m.k |
0.2 W/m.k |
|||
@ 600 ℃ |
0.18 W/m.k |
0.2 W/m.k |
0.22 W/m.k |
|||
Chemical parameter |
||||||
SiO2 |
43-46 % |
43-46 % |
45-48 % |
|||
Al2O3 |
10-13 % |
10-13 % |
13-16 % |
|||
Fe2O3 |
4-6 % |
4-6 % |
4-6 % |
|||
TiO |
1-2 % |
1-2 % |
1-2 % |
|||
MgO |
16-23 % |
16-23 % |
14-20 % |
|||
K2O |
7-10 % |
7-10 % |
5-8 % |
|||
Na2O |
1-2 % |
1-2 % |
1-2 % |
|||
LOI @ 1000 C |
4-6 % |
4-6 % |
3-5 % |
|||
Standard size & Thickness |
||||||
1005*615 mm |
10-60 mm thickness |
10-60 mm thickness |
10-60 mm thickness |
|||
1225*615 mm |
10-60 mm thickness |
10-60 mm thickness |
10-60 mm thickness |
|||
Data are average results of tests conducted under standard precedures and are subject to variation. |
||||||
